Guangzhou Weizhen Machinery Co., Ltd.
2 Years
| Ask Lasest Price | |
| Brand Name : | WEIZHENCO |
| Certification : | CE Certificate |
| Price : | $8,500.00/sets |

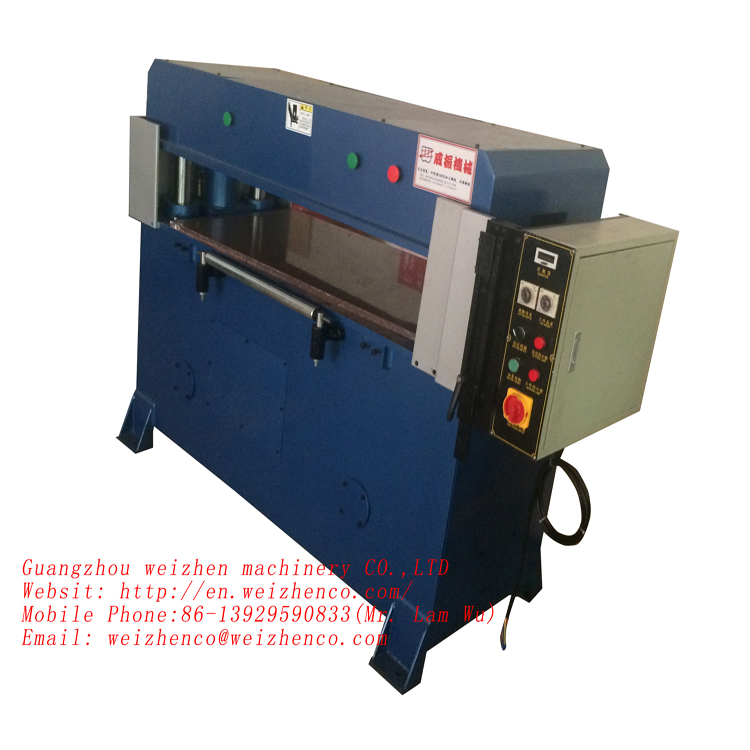

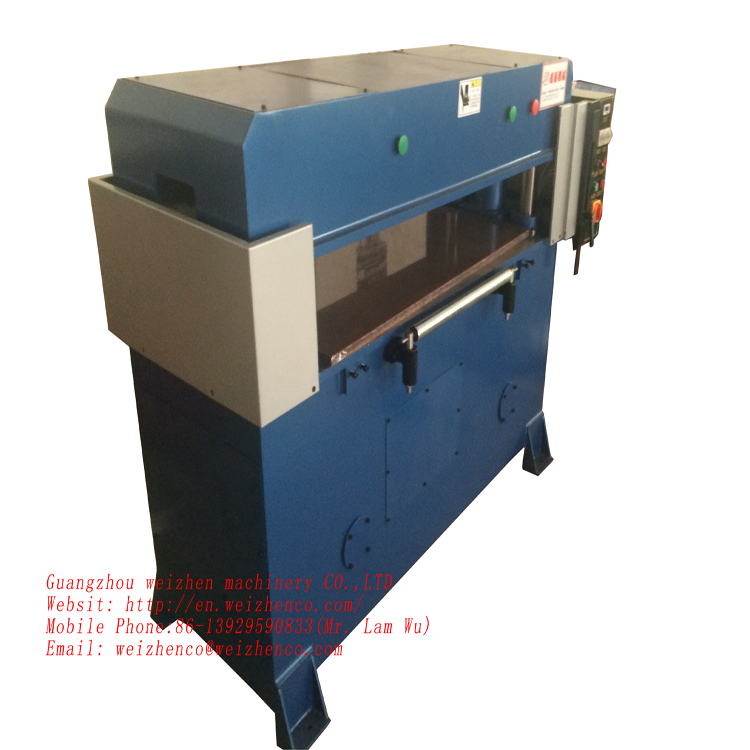

Precise 4-column hydraulic cutting machine
Application :
The machine is mainly suitable for cutting materials needed cutting out like all kinds of EPE and synthetic materials.
Features :
l Easy-handle,low failure rate,fast Cutting
l Dual cylinders and precise 4-column automatic equilibrium joint structure,which can guarantee the same cutting depth of each cutting position.
l Knife mould setting device, Which can perform high/low knife mould adjustment at ease,in accuracy
l and promptness.
l Automatic slow cutting when the cutting board presses downward and touches the knife.ensuring no size error between the top and bottom layers of cutting materials.
l Centralized lubricating system guarantees the precision of the machine and makes the machine durable.
Specification :
Model | Cutting Force | Stroke | Motor power(kw) | Cutting Area(L*W,mm) | Dimension(L*W*H)(mm) | NM(kg) |
WZ-4012 | 40 | 50-250 | 3 | 1200*600 | 1900*1200*1500 | 1900 |
WZ-4016 | 40 | 50-250 | 3 | 1600*600 | 2400*1200*1500 | 2300 |
WZ-6012 | 60 | 50-250 | 4 | 1200*700 | 2100*1300*1500 | 2400 |
WZ-6016 | 60 | 50-250 | 4 | 1600*700 | 2450*1300*1500 | 3100 |
WZ-8012 | 80 | 50-250 | 5.5 | 1200*800 | 2200*1400*1500 | 3800 |
WZ-8016 | 80 | 50-250 | 5.5 | 1600*800 | 2580*1400*1500 | 4200 |
WZ-10012 | 100 | 50-250 | 7.5 | 1200*900 | 2300*1500*1500 | 4500 |
WZ-10016 | 100 | 50-250 | 7.5 | 1600*900 | 2680*1500*1500 | 5400 |
|
|
