Guangzhou Weizhen Machinery Co., Ltd.
2 Years
| Ask Lasest Price | |
| Brand Name : | weizhen |
| Supply Ability : | 100 Set/Sets per Month |
| Price : | $9,800.00 - $14,000.00/sets |
CNC roller transverse & vertical cutting machine
Application:
Used for the whole sheet of EPE to be cut to the specified size the different knives at the same time. Easy-handle and high efficiency.
Features:
1,PLC, auto feeding and multiple knives can cut the material in different sizes at the same time.
2,The height of roller can be motor driven adjusted.
3,Single-phase or triphase power.
4,The cutting size can be adjusted easily.
Specification:
Model | Cutting Width (L*W.mm) | Cutting Thickness(mm) | Total Power(kw) | Rated voltage(v) | Dimension(L*W*H)(mm) | NW(kg) |
R-1300L | 20~1200 | 3~100 | 3.55 | AC380/50HZ | 1950*1200*1100 | 700 |
R-1700L | 20~1600 | 3~100 | 4.25 | AC380/50HZ | 2400*1200*1100 | 800 |
R-2300L | 20~2200 | 3~100 | 4.45 | AC380/50HZ | 2800*1200*1100 | 1000 |
Our machine:
The components:

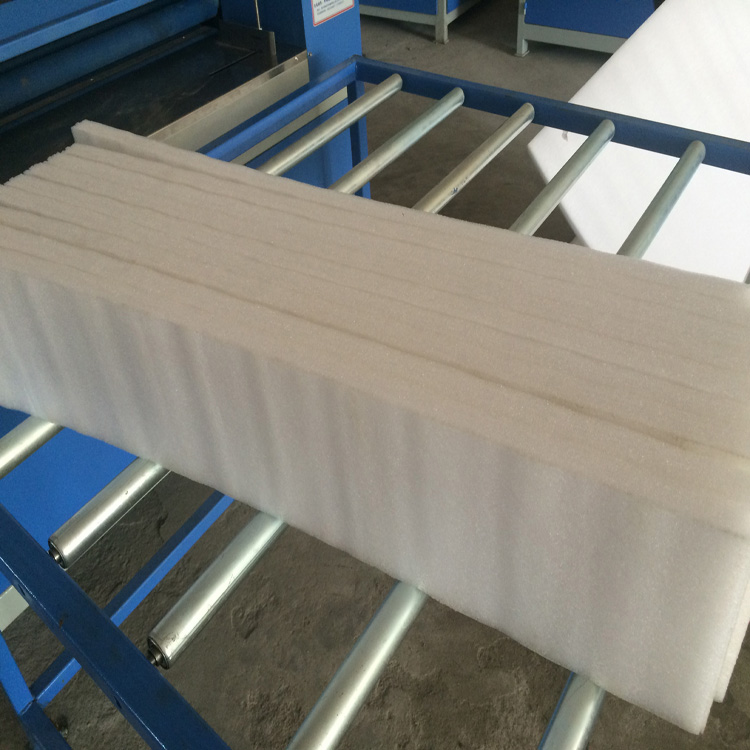

The finish products:
Packing
|
|
