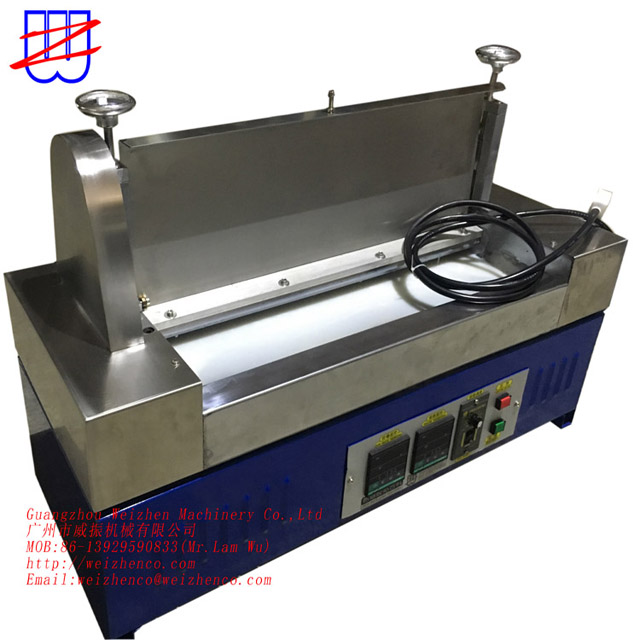

Double roller hot melt glue laminating machine
Application
Used for materials such as EPE,EVA,sponge,foam,shoe material to be coated evenly with hot melt glue.
Features:
1.Novel design,attractive appearance and compact and rational structure;
2.Intelligent control and easy-handle;
3.fast melting down ,the amount of glue can be adjusted and the speed of operating can also be adjusted;
4.Fully enclosed structure and no leaking glue;
5.The whole machine has protection functions such as overheat ,short circuit,overload and creepage;
6.Especially used for thin and big size fittings to be coated;
7.Upper roller can be easily disassembled and assembled .Single roller and dual rollers can be changed easily.
Specification
| Model | Dimension(L*W*H,mm) | Length of Roller(mm) | Rated Voltage(v) | Rated Power(kw) | Rotate Speed of Rolle(r/min) | N W(kg) |
| WZ-S400L | 900×530×320 | 400 | AC220 | 2 | 0-200 | 75 |
| WZ-S600L | 1200×530×320 | 600 | AC220 | 2.2 | 0-200 | 90 |
| WZ-S700L | 1300×530×320 | 700 | AC220 | 2.5 | 0-200 | 103 |
| WZ-S800L | 1400×530×340 | 800 | AC220 | 3 | 0-200 | 125 |
Upper roller can be adjusted 5-100mm
|
|
